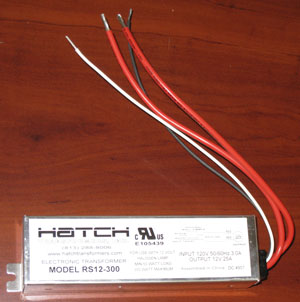

Hatch Transformers - 300 Watt Electronic Hardwire Transformer - RS12-300


Manufacturer: Hatch Transformers
Item Number: RLLD13607HAT


This hardwire metal cased 300Watt, low voltage electronic transformer generally works with standard incandescent dimmers. Its features include:

  • Minimum wattage: 50 watts
  • Maximum wattage: 300 watts
  • Input voltage: 120 volt
  • Output voltage: 11.5 volt
  • Input amperage: 2.5 amps
  • Output amperage: 26.1 amps
  • Dimensions: 5.85" L x 1.70" W x 1.27" D
  • Must use a minimum of 75 watts when using a dimmer.
  • Safety listing: UL/cUL recognized.

Electronic low voltage transformer:

  • High reliability
  • Moissture resistant
  • Emits no audible noise
  • Low harmonic distortion
  • High power factor
  • Lightweight, compact design
  • Small case size
  • Works with most commercially available dimmers. Hardwire electronic dimmers are recommended for optimum performance.

Environmental Specifications:

  • Maximum case temperature: 80 degree Celcius
  • Sound rating: A+
  • Operating humidity: 95% relative humidity, non-condensating
  • Environmental protection: epoxy sealed for moisture resistance and shock vibration resistance
  • Safety listing: class P type 1 outdoor

Electrical/Mechanical Specifications:

  • Input: 120V AC - 50/60 Hz
  • Output: 11.5 VAC
  • Enclosure material: metal
  • Weight: 12.8 oz
  • Power factor: >0.95
  • Operating frequency: 25 KHz
  • Total harmonic distortion: <= 20%
  • Input leads: 6", 18AWG stranded, 105 degree C stripped 3/8" tinned
  • Output leads: 6" 18AWG stranded, 105 degree C stripped 1/8" tinned

Soft start circuitry:

  • All models of Hatch low-voltage transformers utilize a soft start circuitry to maximize lamp life. The soft start circuit ramps up the lamp filament voltage slowly when the lamp is cold.
  • Note: instant start on hot lamp re-strike

Electronic Short-Circuit Protection:

  • All Hatch low-voltage transformers employ our (ESP) Electronic Short Circuit and over load protection. The ESP sensing circuit will instantly shut down the output before any of the components are stressed if a short circuit or over load is detected. The transformer will automatically reset as soon as the fault is corrected.

Click here to view dimensions

Wiring Diagram
